With a deep low end and a forward midrange, the TF47 delivers a warm and punchy sound reminiscent of the U47 and M49.



With a deep low end and a forward midrange, the TF47 delivers a warm and punchy sound reminiscent of the U47 and M49.



The TF47 is a modern design based on the “German” sound, drawing inspiration from the historic U47 and M49. With a deep low end and a forward midrange, the TF47 is excellent for adding depth and presence to any source. These characteristics make it especially ideal for recording vocals, guitar amps, and drums. At the heart of the TF47 is an all-brass K47-style capsule, new old stock 5840W vacuum tube, and custom-made historically accurate BV8 transformer, as found in the U47. These components deliver a warm and punchy sound, reminiscent of the U47, as well as a pleasant top end articulation that sits perfectly in the mix with a certain authority and weight.


  • Full low end and forward midrange, reminiscent of the U47
  • Smooth and detailed top end
  • Cardioid, Omni, and Figure 8 polar pattern selection
  • New old stock Philips/Raytheon 5840W vacuum tube
  • K47-style capsule and robust BV8 output transformer
  • Designed and hand assembled in the USA
  • Recommended Applications: Vocals, Piano, Drums, Trombone, Bass, Cello

Technical Specifications

Type: Vacuum Tube Condenser
Polar Pattern: Cardioid, Omnidirectional, Figure-8
Frequency Range: 20 Hz – 20 kHz, ±3 dB
Power Source: External Power Supply
Capsule: TK47 Center Terminated Large Diaphragm
Tube: NOS Philips/Raytheon 5840W
Transformer: TELEFUNKEN Elektroakustik BV8
Sensitivity: 22 mV/Pa, ±1 dB
THD at 1kHZ at 1Pa (Amplifier): < 0.3%
Output Impedance: < 300 Ω
Maximum SPL (for 1% THD): 125 dB
S/N Ratio: 84 dBA
Self Noise (Amplifier): 10 dBA
Dimensions: 200 mm L x 46 mm Dia
Weight: 710 g
Included Accessories: Tube Mic Cable, Power Supply, Shock Mount, Stand Mount, Mic Sleeve, Carrying Case

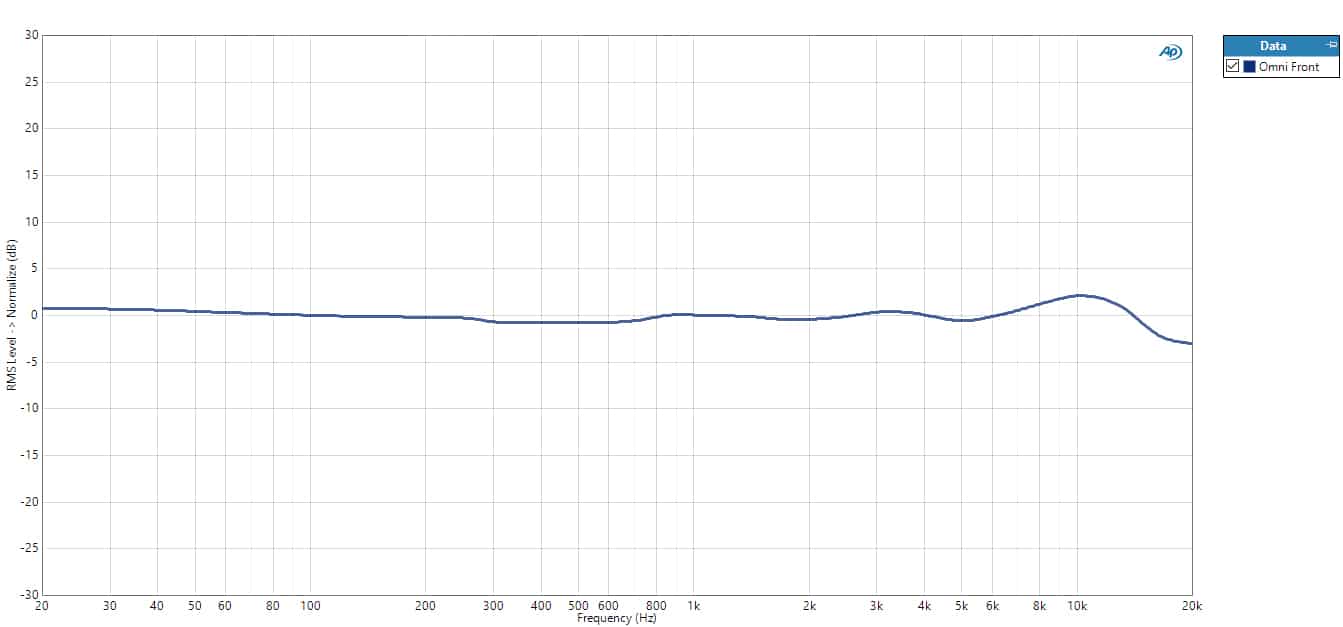

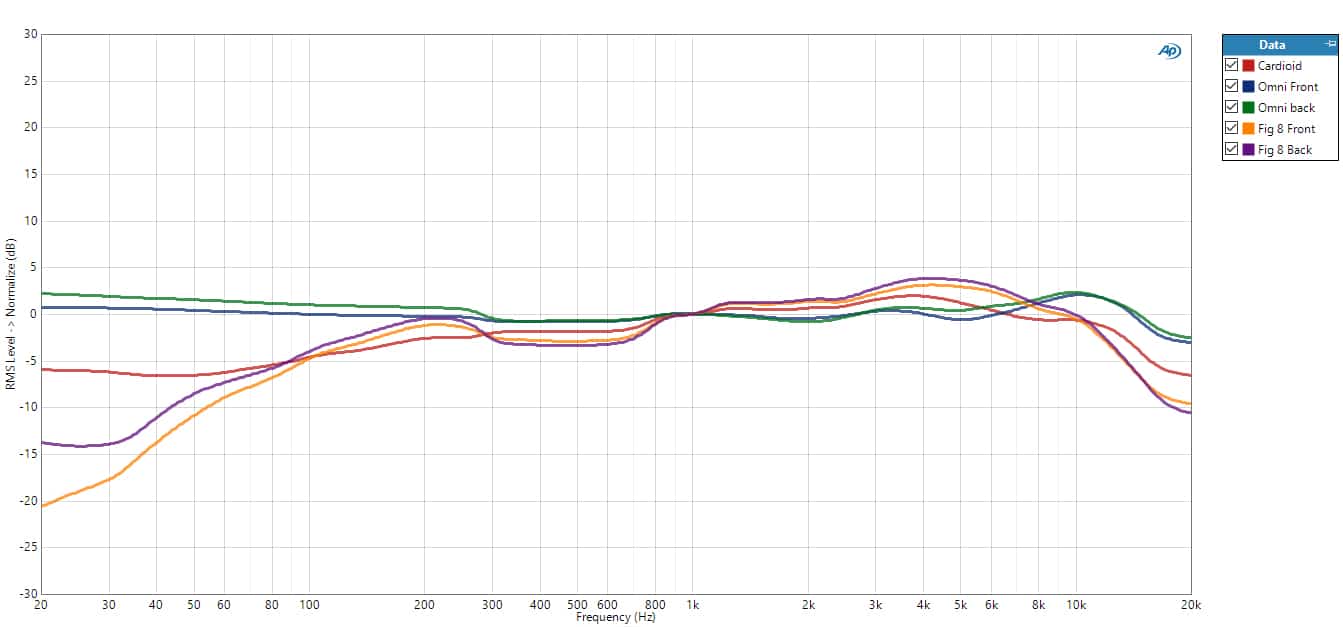

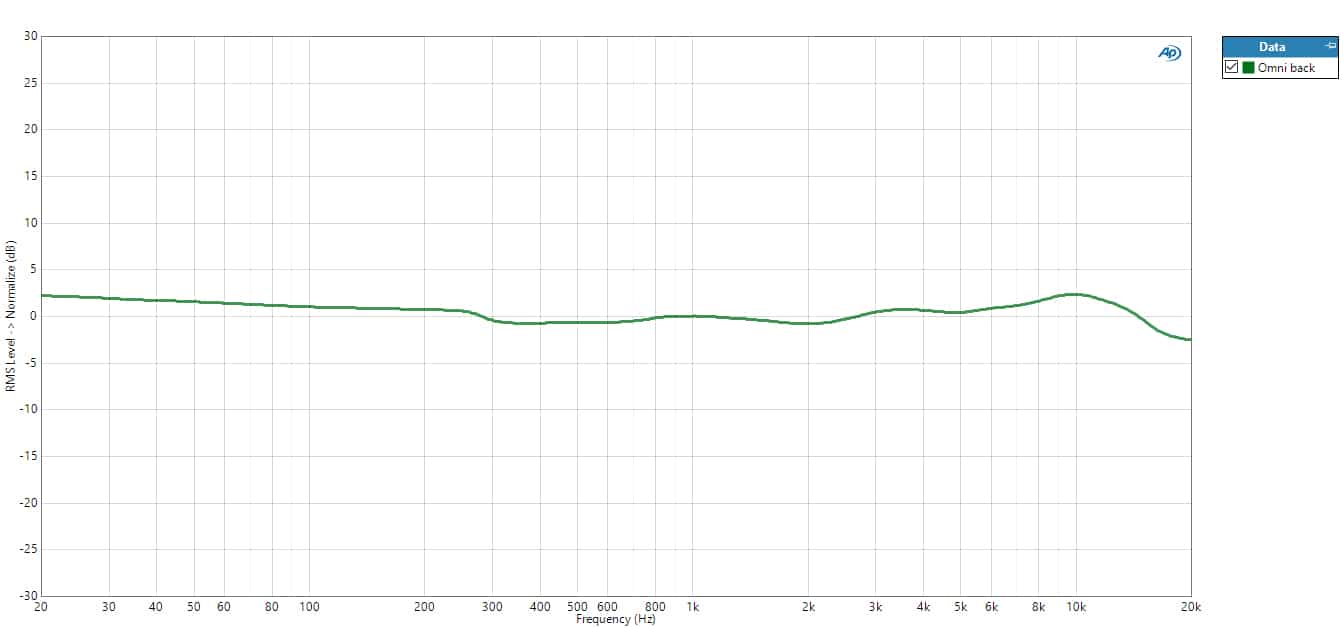

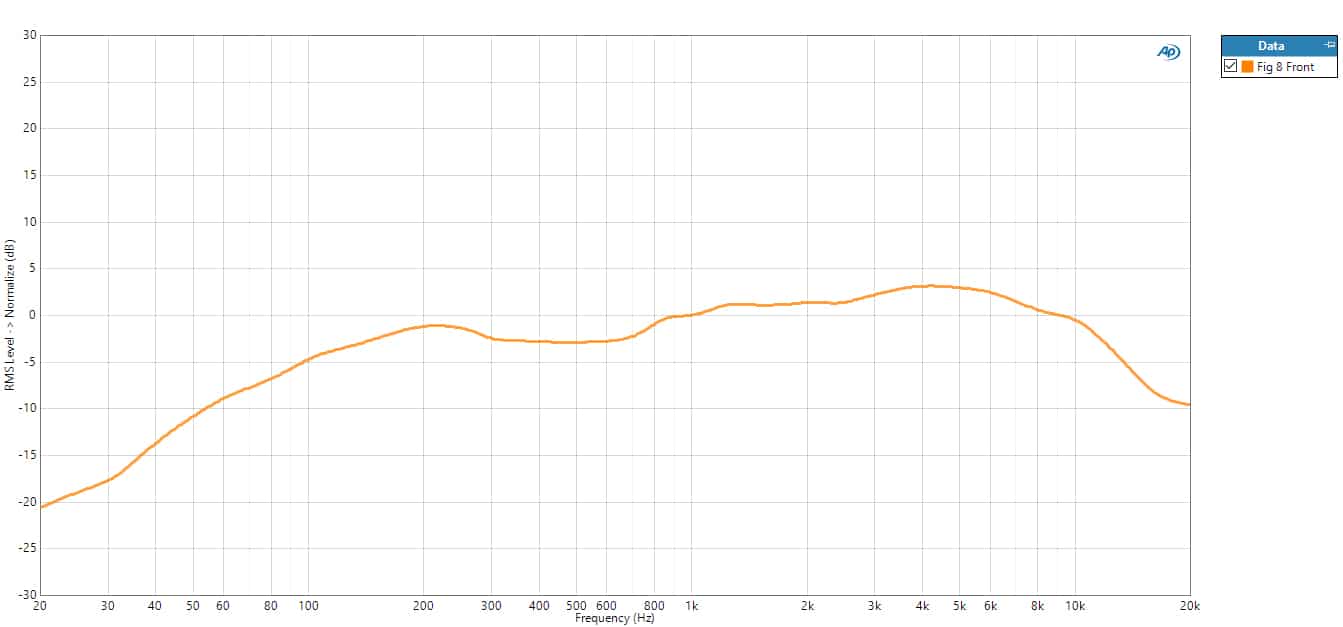

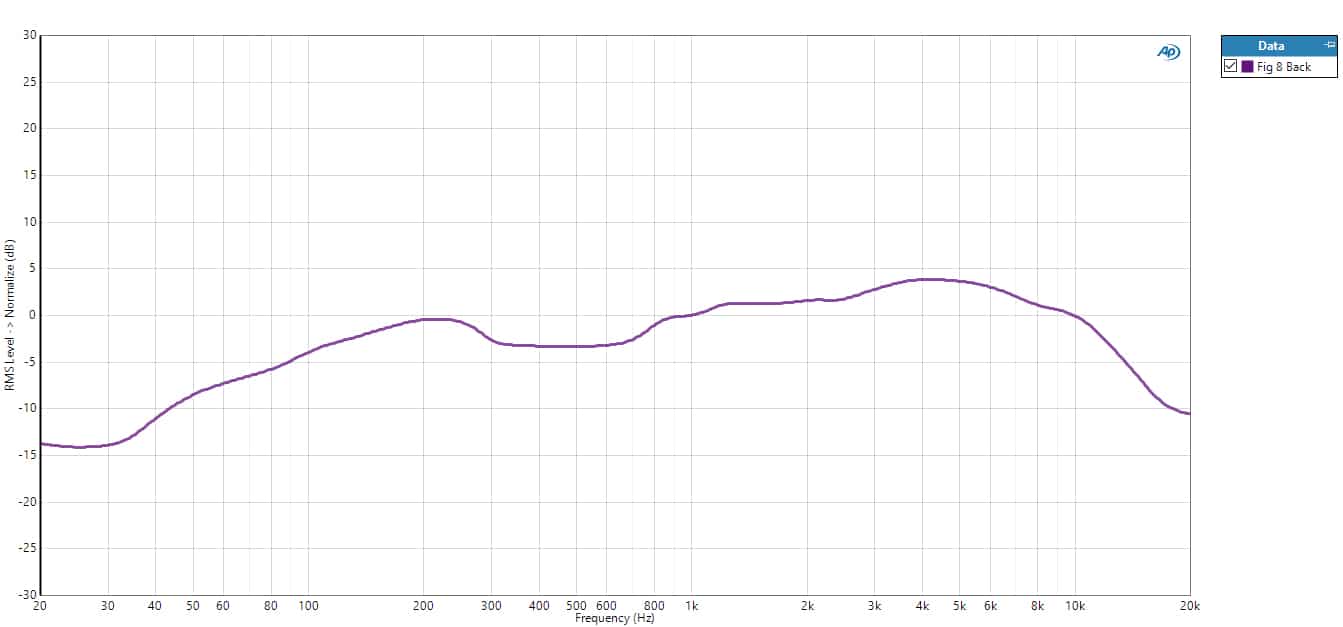

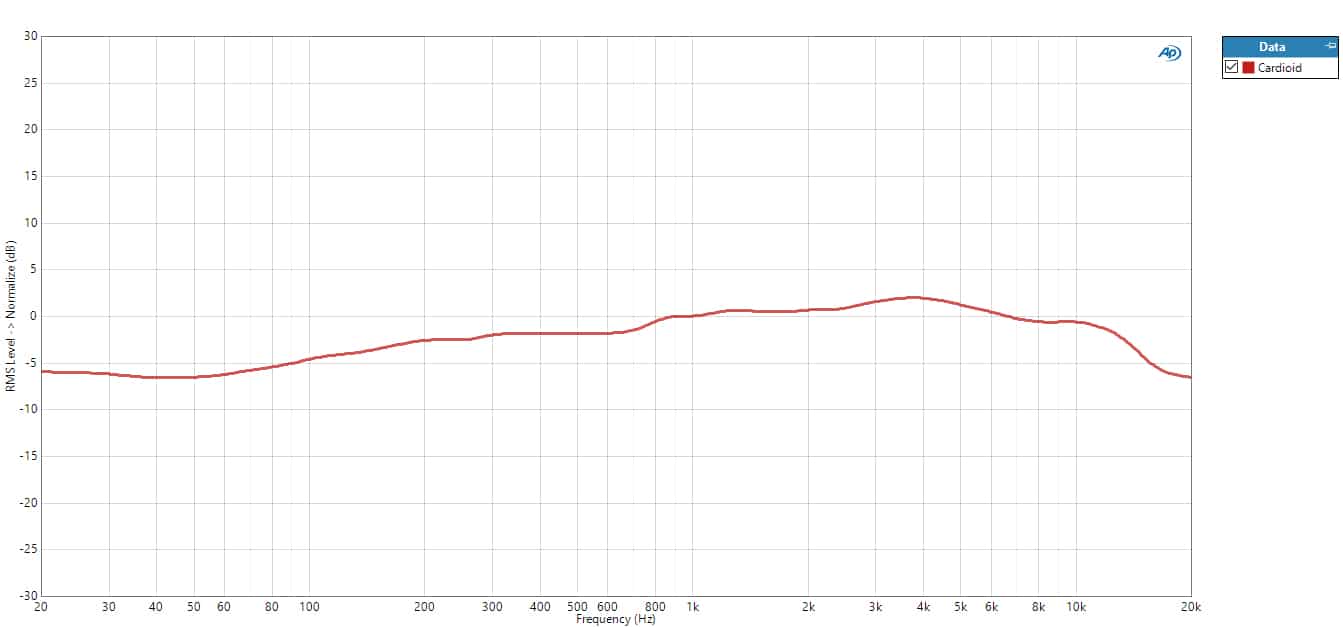

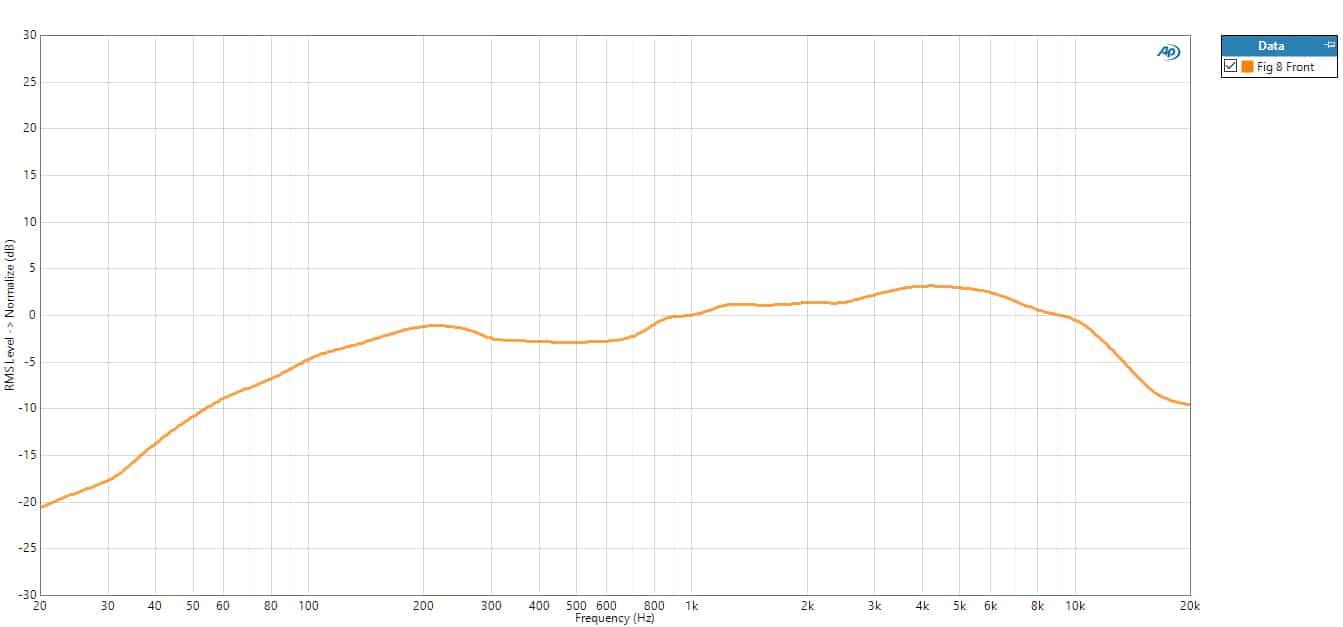

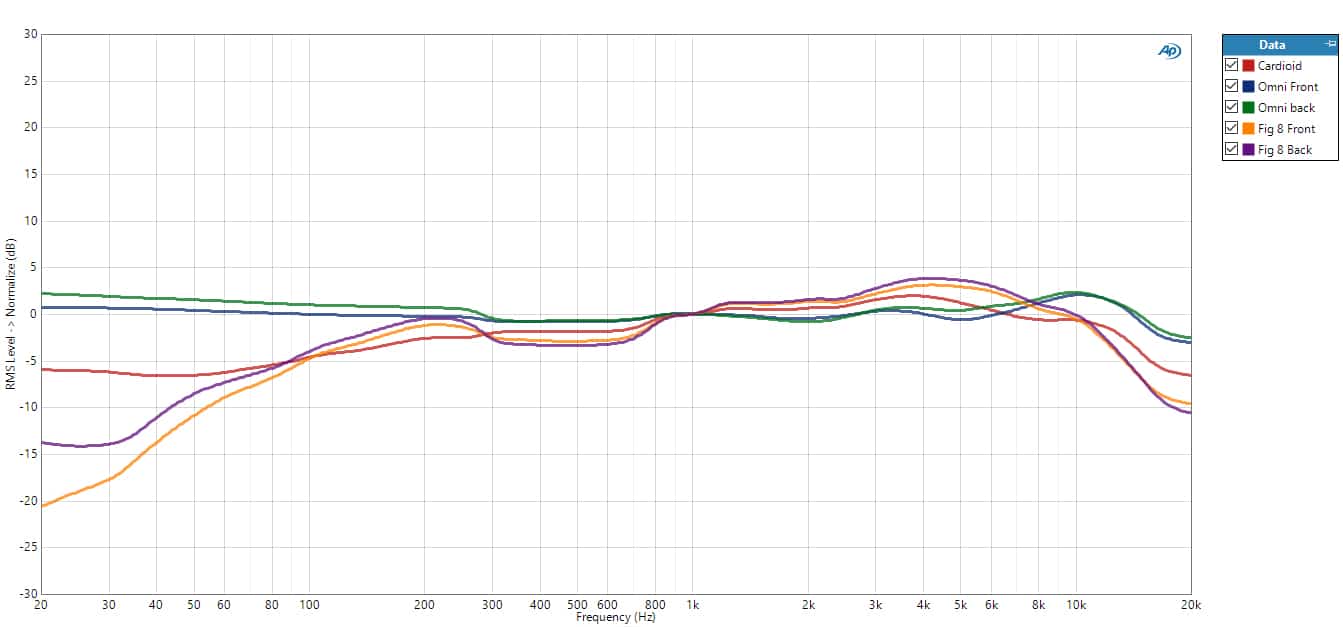

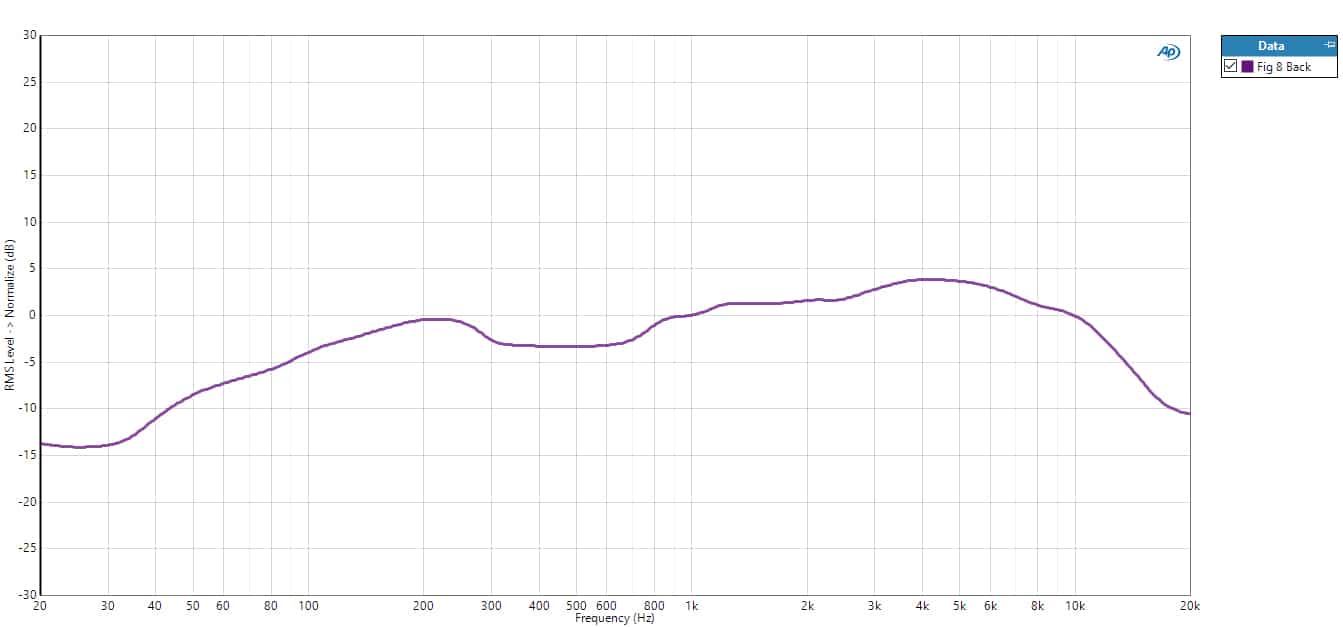

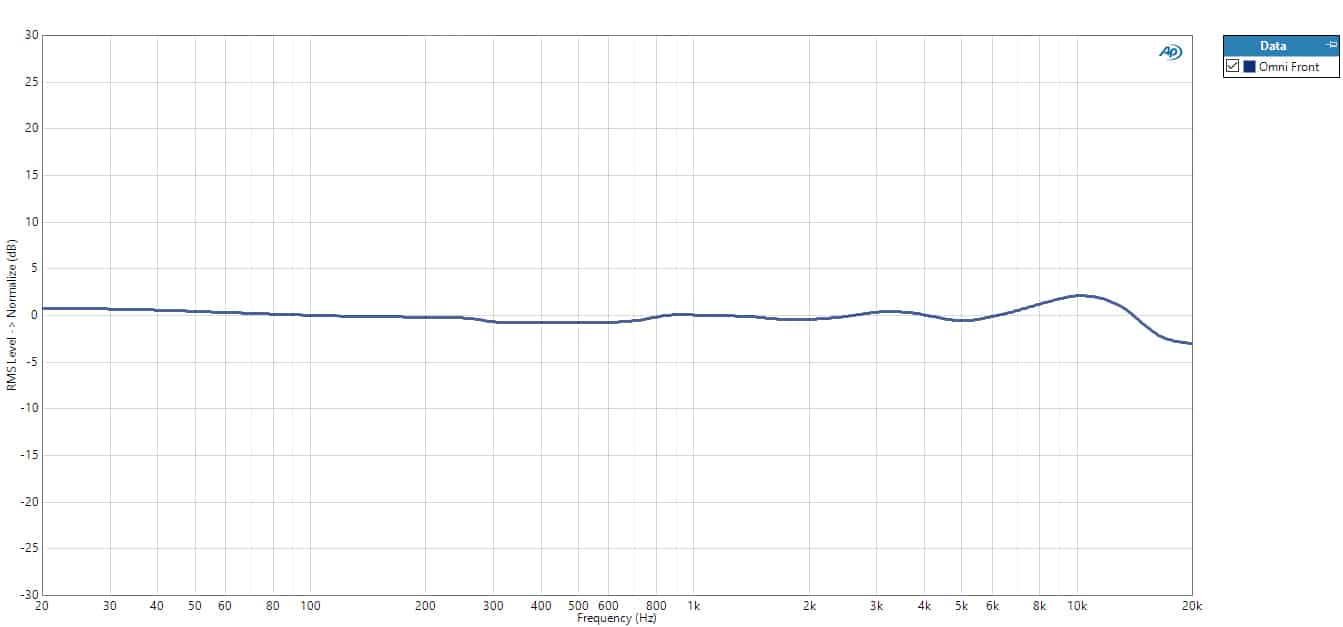

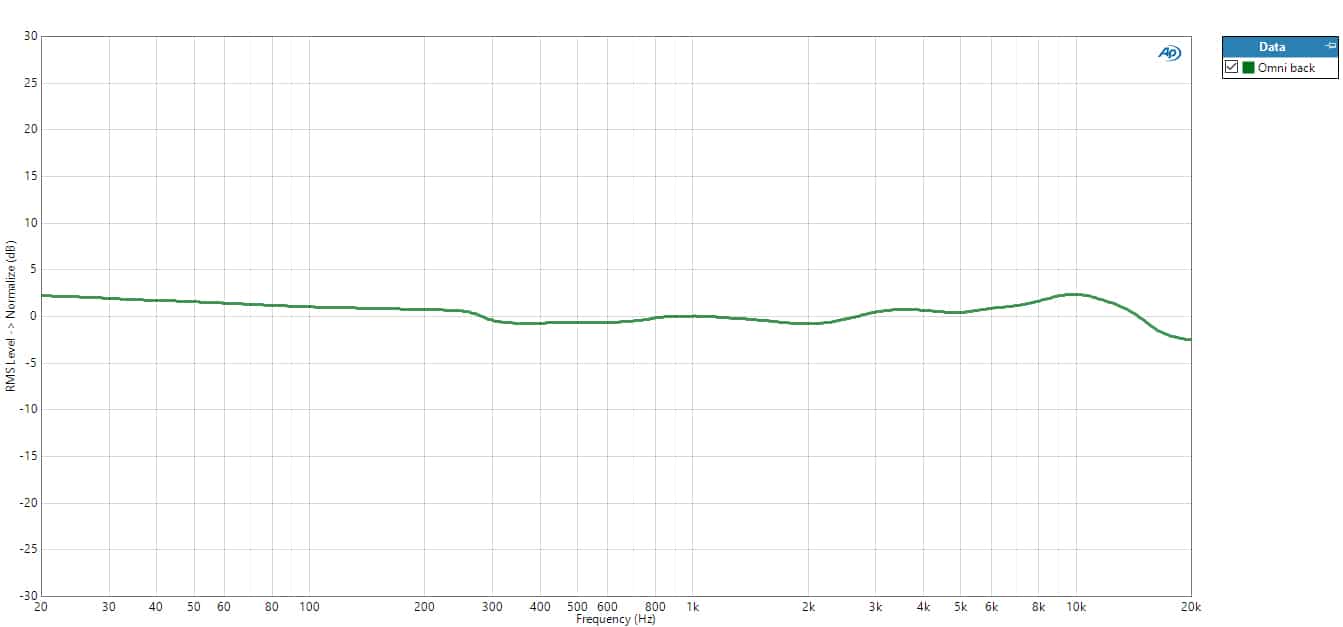

Frequency Response


Female Jazz Vocal TF47
Male Pop Vocal TF47

Configuration Options


Large diaphragm three-pattern tube microphone system

Each system includes:

  • TF47 Microphone
  • M 903 Power Supply
  • M 803 Tube Microphone Cable – 7m
  • ZC03 Zipper Case
  • M 703 Shock Mount
  • M 782 Stand Mount
  • MS01 Microphone Sleeve

TF47 Stereo Set

A frequency and gain matched pair of microphones with dual power supply

Each system includes:

  • (2x) Matched TF47 Microphones
  • M 901S Power Supply
  • (2x) M 803 Tube Microphone Cables – 7m
  • FC03S Locking Flight Case
  • (2x) M 703 Shock Mounts
  • (2x) M 782 Stand Mounts
  • (2x) MS01 Microphone Sleeves
