TF29 Copperhead

The fixed cardioid TF29 is a workhorse microphone, accurately capturing nearly any source put in front of it with a natural tonality


TF29 Copperhead

The fixed cardioid TF29 is a workhorse microphone, accurately capturing nearly any source put in front of it with a natural tonality


TF29 Copperhead

The TF29 is an original TELEFUNKEN Elektroakustik design that has garnered fans for its natural and non-hyped tonality and unparalleled “quality for price”. It’s a workhorse microphone with a reputation of outstanding sonic performance and value, capable of accurately and honestly capturing vocals, guitars, drums, and nearly any other source put in front of it. The Cardioid-only TF29 Copperhead is easily distinguishable from the TF39 by the addition of the Cardioid symbol on the front of the microphone.


  • Balanced, natural midrange and high end
  • Extended low frequency response
  • Fixed Cardioid polar pattern
  • Premium Swedish-made Lundahl output transformer
  • New Old Stock General Electric 5654W vacuum tube
  • Designed and hand assembled in the USA
  • Recommended Applications: Vocals, Guitar Amps, Saxophone, Drum Overheads

Technical Specifications

Type: Vacuum Tube Condenser
Polar Pattern: Cardioid
Frequency Range: 20 Hz – 20 kHz, ±3 dB
Power Source: External Power Supply
Capsule: TK67S Center Terminated Large Diaphragm, Single Membrane
Tube: NOS GE 5654W
Transformer: Lundahl LL1935
Sensitivity: 17 mV/Pa, ±1 dB
THD at 1kHZ at 1Pa (Amplifier): < 0.3%
Output Impedance: < 300 Ω
Maximum SPL (for 1% THD): 130 dB
S/N Ratio: 87 dBA
Self Noise (Amplifier): 7 dBA
Dimensions: 200 mm L x 46 mm Dia
Weight: 650 g
Included Accessories: Tube Mic Cable, Power Supply, Shock Mount, Stand Mount, Mic Sleeve, Carrying Case

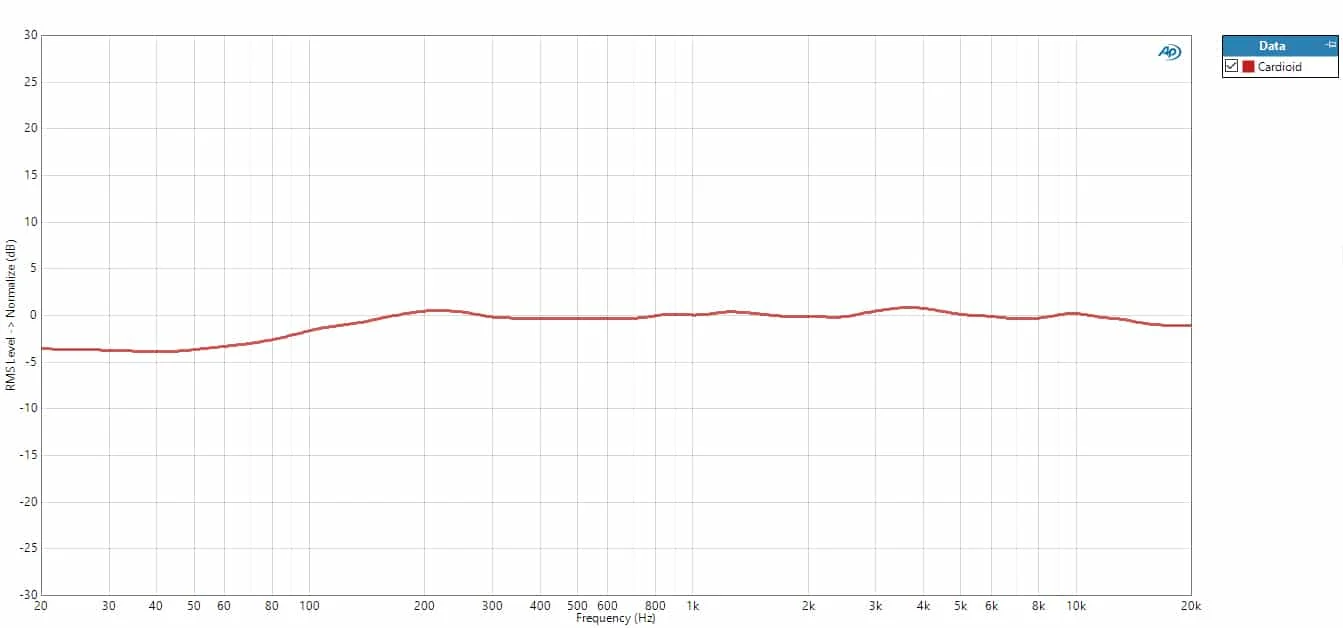

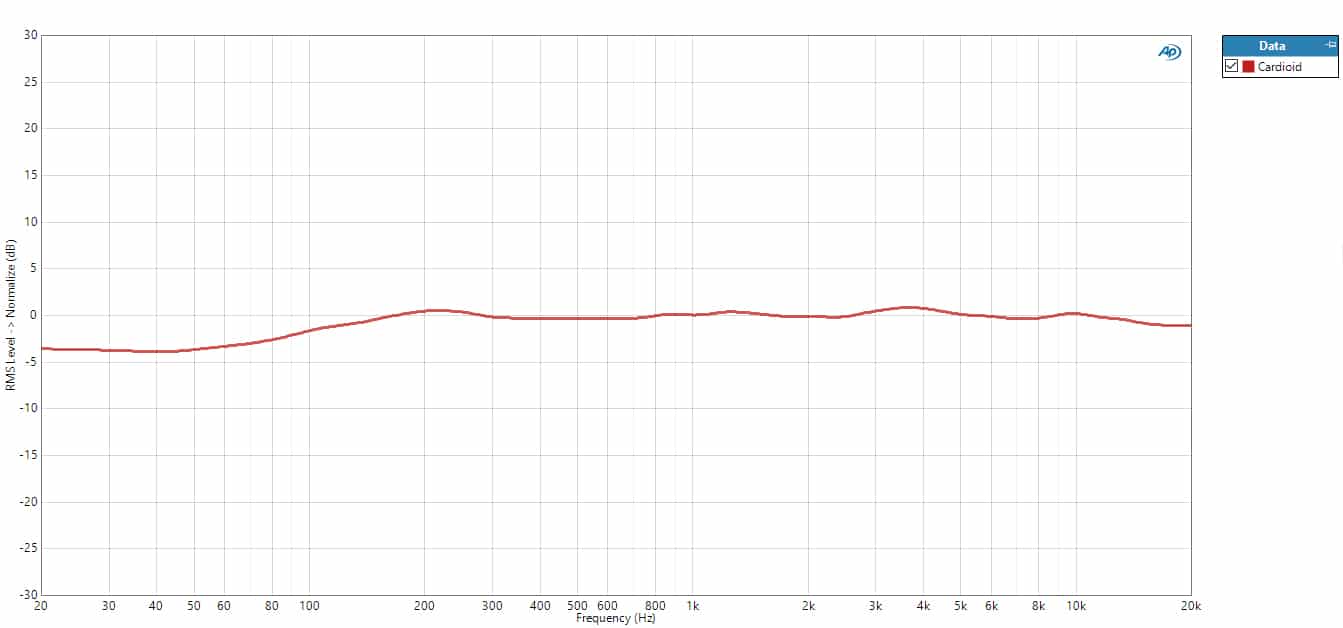

Frequency Response


Female Jazz Vocal TF39
Male Pop Rock Vocal TF39

Configuration Options

TF29 Copperhead

Large diaphragm cardioid tube microphone system

Each system includes:

  • TF29 Microphone
  • M 902 Power Supply
  • M 803 Tube Microphone Cable
  • ZC03 Shell Case
  • M 703 Shock Mount
  • M 782 Stand Mount
  • MS01 Microphone Sleeve

TF29 Copperhead Stereo Set

A frequency and gain matched pair of microphones with dual power supply

Each system includes:

  • (2x) Matched TF29 Microphones
  • M 960S Power Supply
  • (2x) M 803 Tube Microphone Cables
  • FC03S Locking Flight Case
  • (2x) M 703 Shock Mounts
  • (2x) M 782 Stand Mounts
  • (2x) MS01 Microphone Sleeves
