M82

Designed with kick drum and broadcast vocals in mind, the robust M82 features a large dynamic diaphragm and two separate onboard EQ switches.

$399.00$499.00

M82

Designed with kick drum and broadcast vocals in mind, the robust M82 features a large dynamic diaphragm and two separate onboard EQ switches.

$399.00$499.00

M82

The M82 is a robust, end-address microphone that features a large dynamic diaphragm with superb low frequency capabilities. Though it was designed to capture fat and punchy kick drum tones, the two on-board EQ switches make the M82 equally suited for a multitude of sources including vocals, percussion, guitar and bass amplifiers, organ, and brass instruments. Both the KICK EQ and HIGH BOOST switches function independently and give the user the ability to tailor the microphone’s response to the source with ease. The M82 is hand-assembled and tested in our American facility.
The M82 is included in all Drum Packs and is also available in the M82 Podcast package, which includes a high-quality boom arm and shock mount.

Features

  • Large diaphragm dynamic capsule provides superior low frequency definition
  • Balanced mid and high frequency response adds clarity and intelligibility
  • Independently switchable two band EQ features a mid cut and high boost
  • End-address design for easy positioning on most sound sources
  • Designed and hand assembled in the USA
  • Recommended Applications: Kick Drum, Bass & Guitar Amps, Broadcast/Podcast Vocals

Technical Specifications

Type: Dynamic
Polar Pattern: Cardioid
Frequency Range: 25 Hz – 18 kHz, ±3 dB
Capsule: 32mm Dynamic Moving Coil
Transformer: TELEFUNKEN Elektroakustik T80
Sensitivity: 1.85 mV/Pa, ±1 dB
Output Impedance: 250 Ω
Maximum SPL (for 1% THD): 146 dB
Dimensions: 155 mm L x 63 mm Dia
Weight: 434 g
Included Accessories: Right Angle XLR Cable, Stand Mount, Zip Pouch

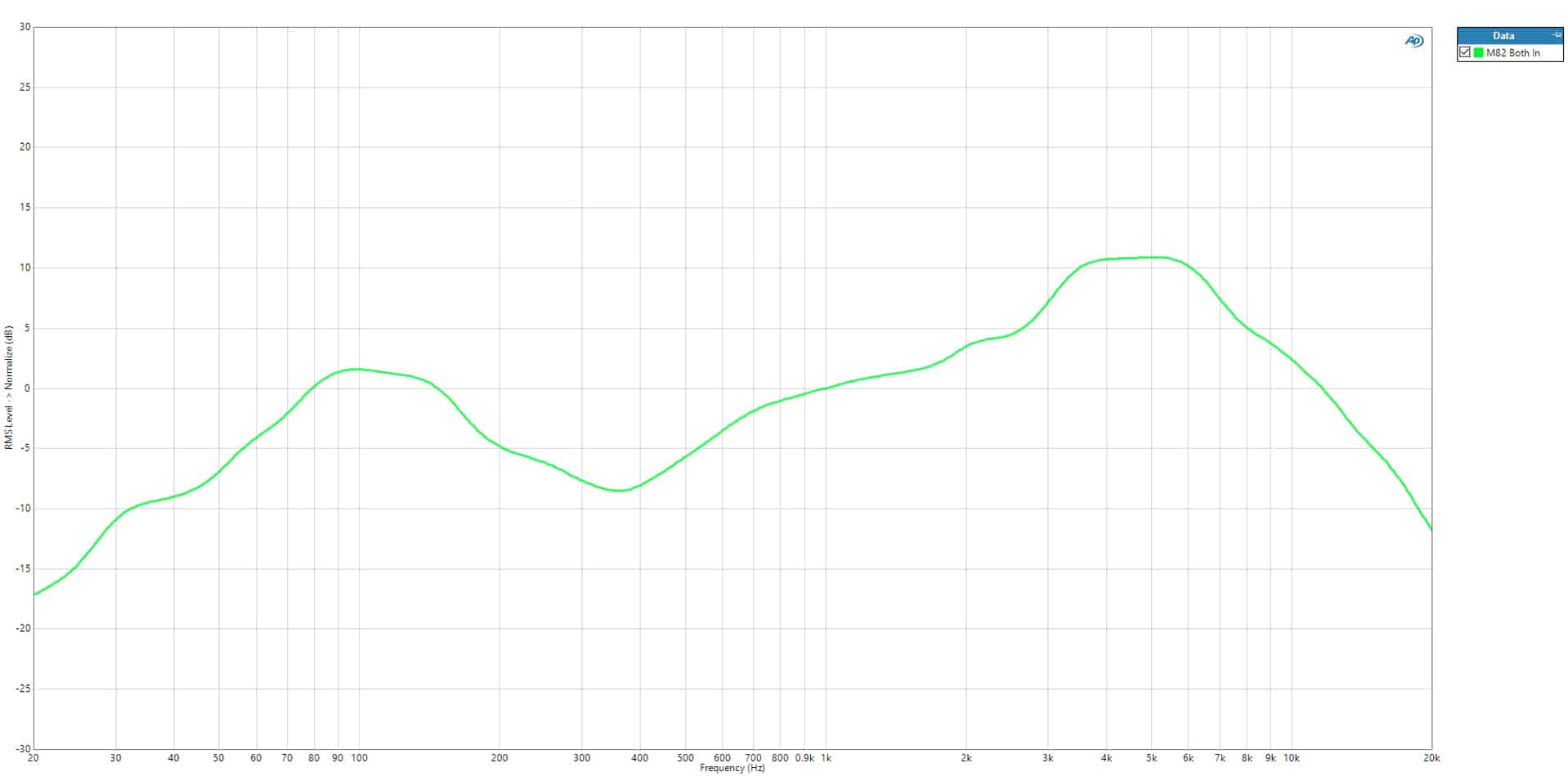

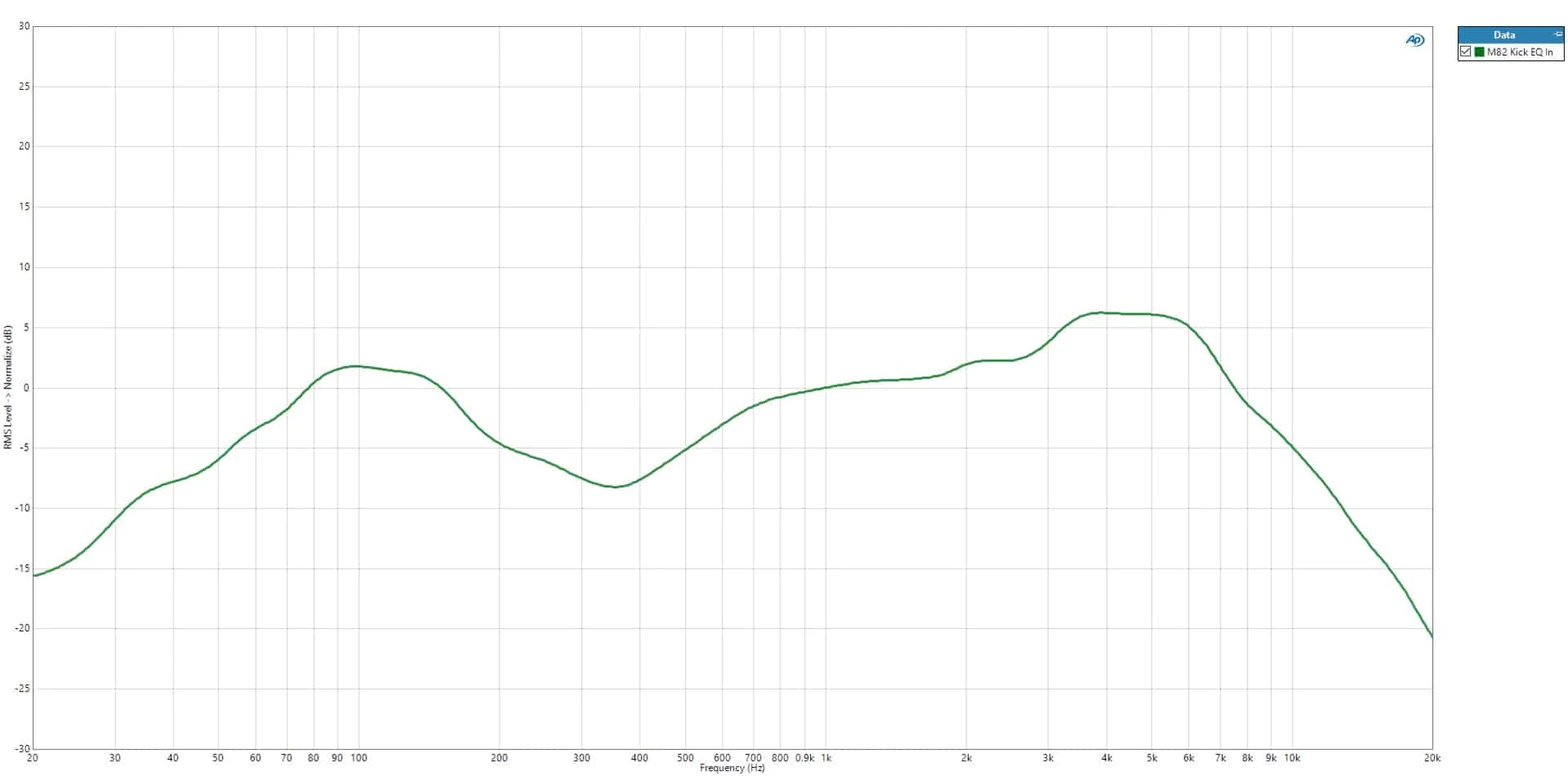

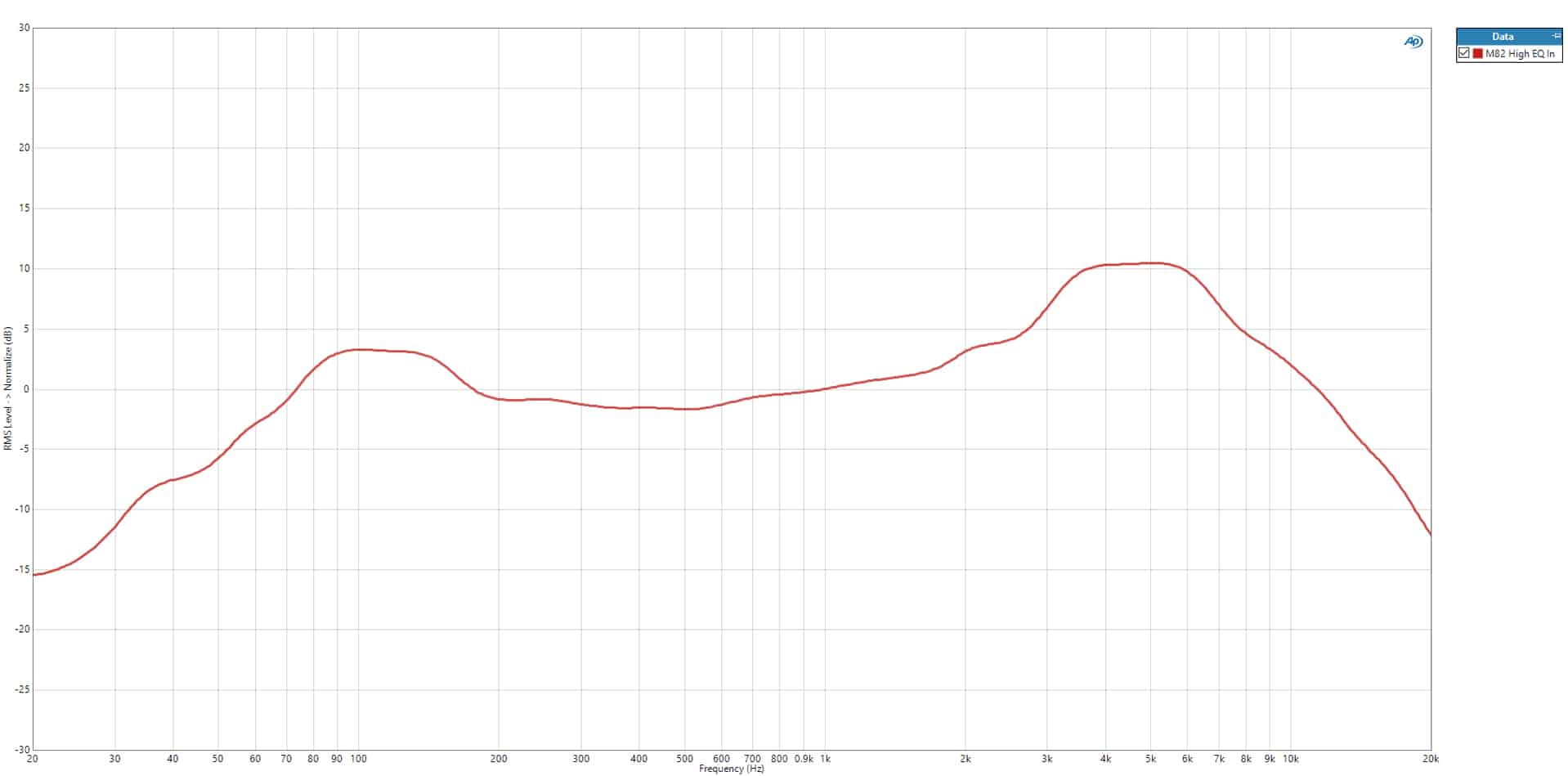

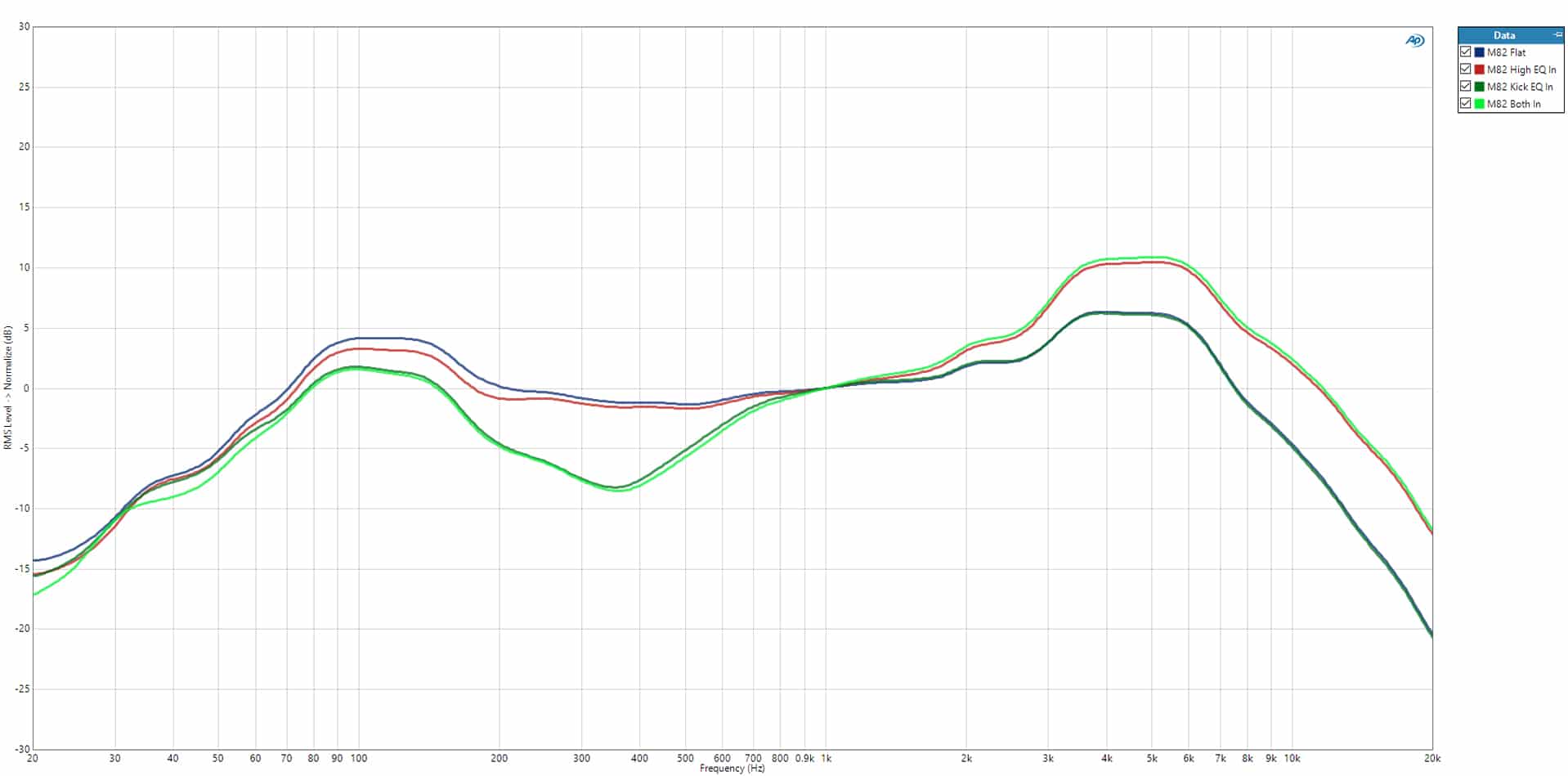

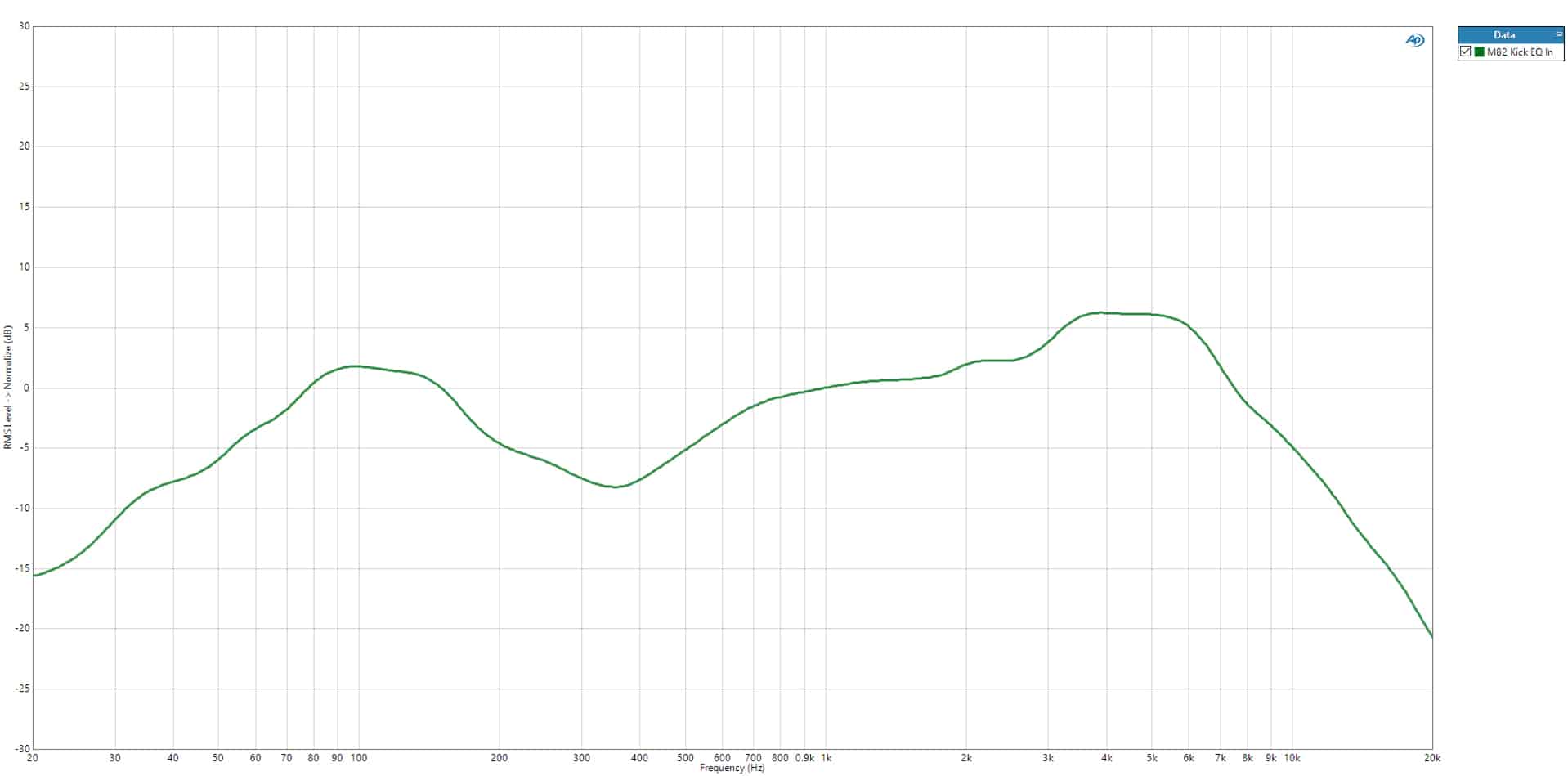

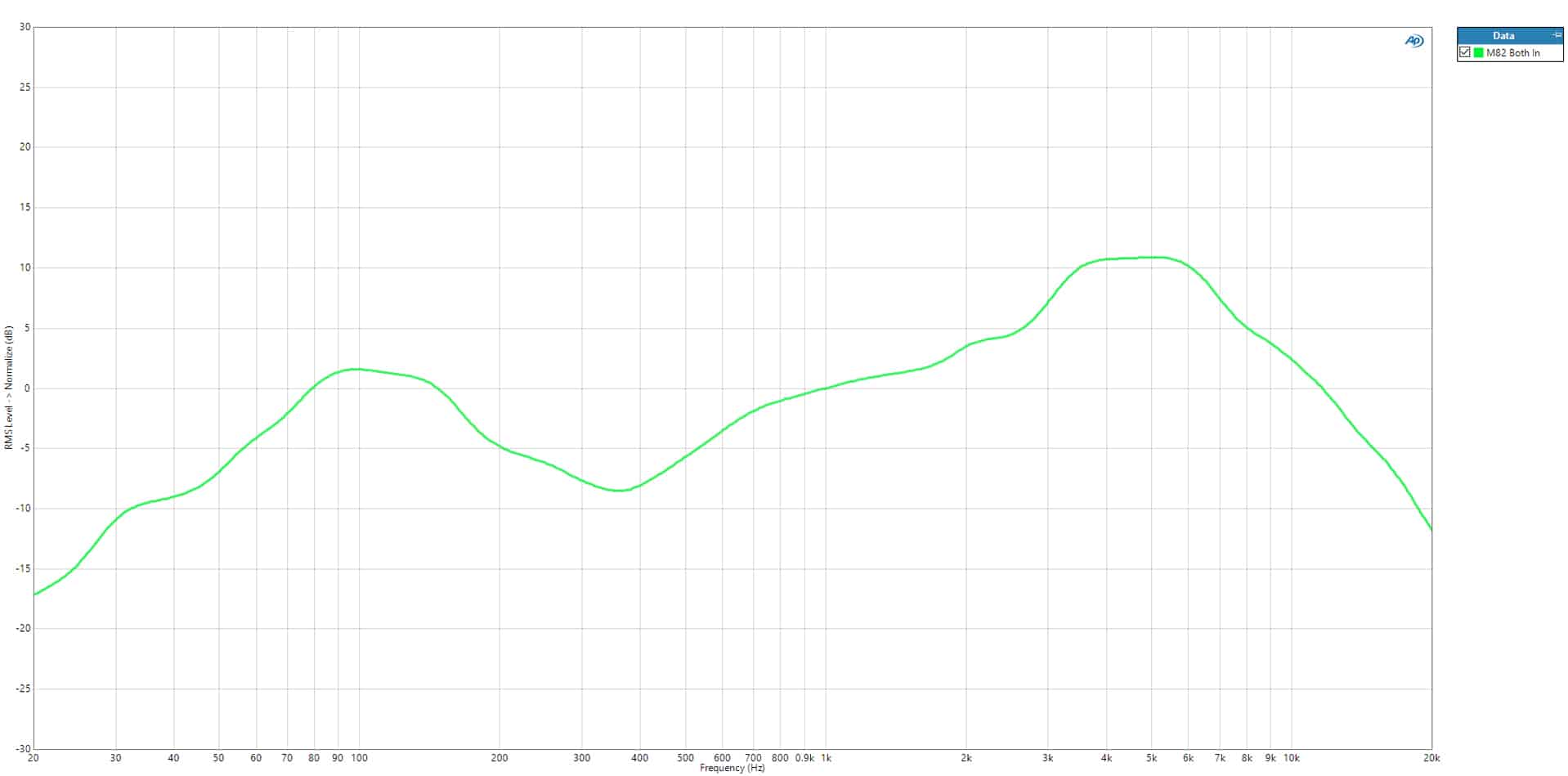

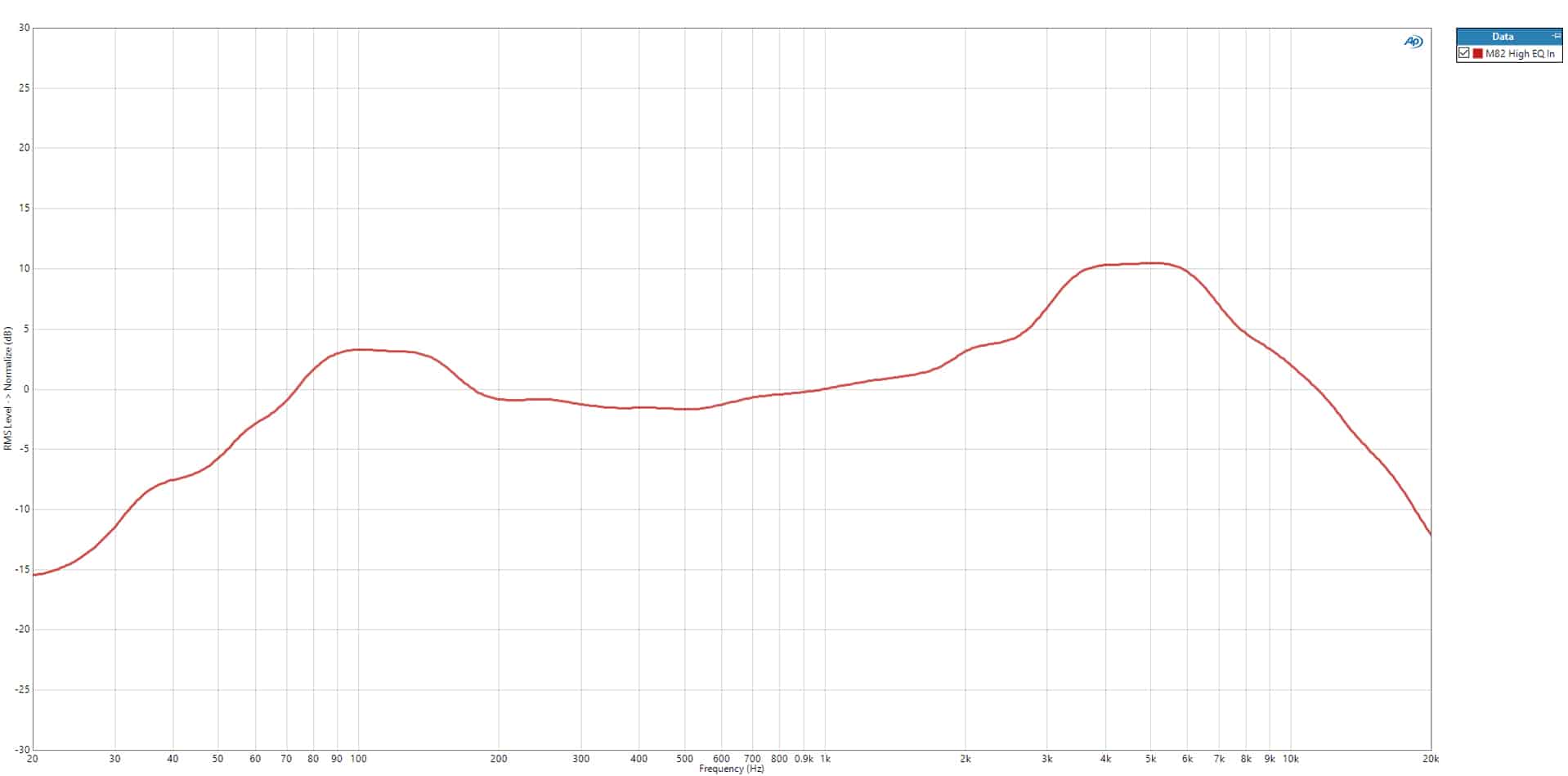

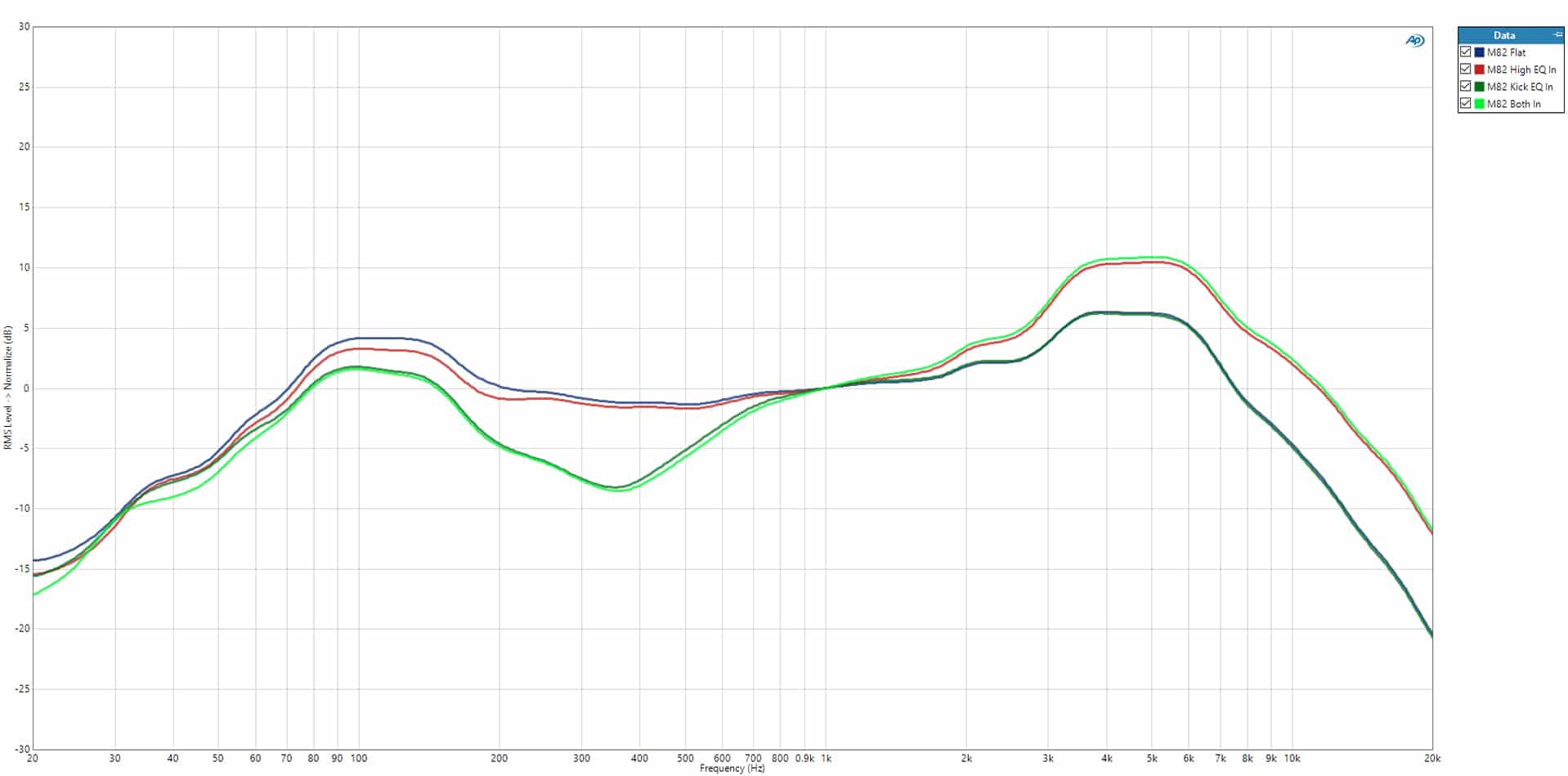

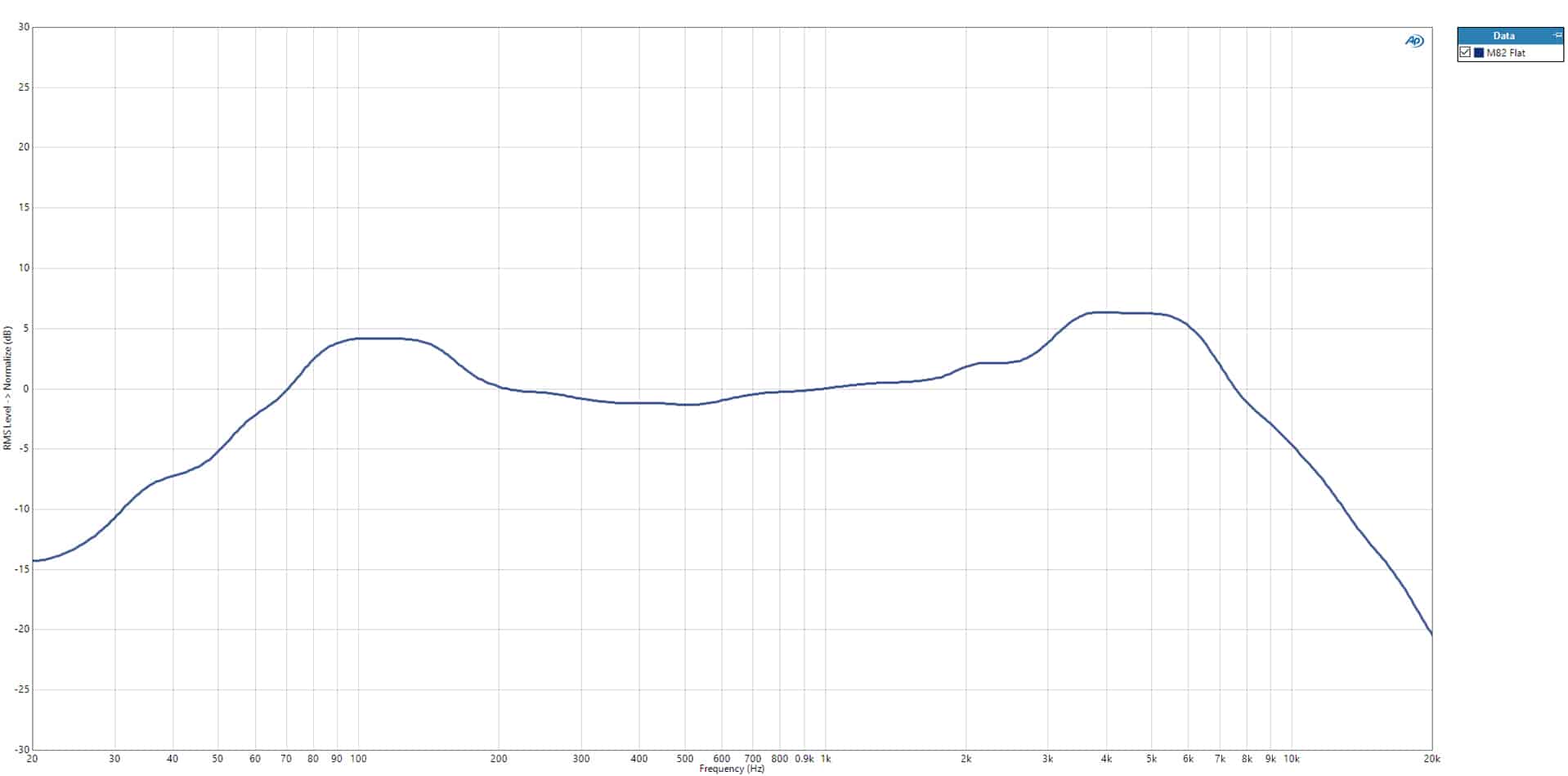

Frequency Response

Samples

Configuration Options

M82

Single microphone system

Each system includes:

    • M82 Microphone
    • M 782 Stand Mount
    • SGMC-5R 5-Meter Right-Angle XLR Cable
    • ZB82 Zipper Bag

M82 Podcast Package

Podcast microphone system

Each system includes:

    • M82 Microphone
    • M 788 Boom Arm Table Mount Stand
    • M 782 Stand Mount
    • SGMC-5R 5-Meter Right-Angle XLR Cable
    • ZB82 Zipper Bag

“Everyone knows that Steely Dan is famous for their incredible accomplishments in recorded audio,” commented Dowdle. “Living up to the expectations of such an iconic duo, who are revered in the music industry for their attention to detail, is challenging to say the least. With TELEFUNKEN’s new M82 mics I was able to capture and reproduce the kick, as well as the bass guitar in ways that truly emulated the original Steely Dan recordings. The filter switches on the mic itself, along with the internal shock mount system, proved to be an invaluable asset.”

Mark Dowdle – Steely Dan FOH
