ELA M 251T

Based upon the classic ELA M 251E microphone, but with a modern twist: The 251T utilizes Alloy 2213™ as the diaphragm membrane material instead of gold.


ELA M 251T

Based upon the classic ELA M 251E microphone, but with a modern twist: The 251T utilizes Alloy 2213™ as the diaphragm membrane material instead of gold.


ELA M 251T

TELEFUNKEN Elektroakustik introduces the new ELA M 251 T, a microphone featuring the newly developed CK13™ capsule. While based upon the classic ELA M 251 models, the ELA M 251 T adds a very modern twist. That twist is the implementation of Alloy 2213™ as the diaphragm membrane material for the CK13™ capsule. Alloy 2213™ is an amalgam of Titanium and Aluminum, which was originally developed for the aerospace industry.
The ELA M 251 T System comes complete with capsule, amplifier featuring a NOS Siemens ECC801S vacuum tube, power supply, and 4-year warranty. Included in the package is a standmount cable connector, ruggedly-built power supply, wooden microphone box, and a locking tweed flight case.


  • Modern sounding detail and tone
  • Pronounced high end accuracy and low frequency definition
  • Cardioid, Omni, and Figure 8 polar pattern selection
  • Unique Alloy 2213™-sputtered CK13 capsule, made in USA
  • Premium New Old Stock Siemens ECC801S vacuum tube
  • Point-to-point wired in the USA true to the original design
  • Includes American-made standmount cable and fully regulated power supply

Technical Specifications

Type: Vacuum Tube Condenser
Polar Pattern: Cardioid, Omnidirectional, Figure-8
Frequency Range: 20 Hz – 20 kHz, ±3 dB
Power Source: External Power Supply
Capsule: TELEFUNKEN Elektroakustik CK13 – Edge Terminated Large Diaphragm
Tube: Siemens ECC801S NOS
Transformer: Haufe T14/1
Sensitivity: 17 mV/Pa, ±1 dB
THD at 1kHZ at 1Pa (Amplifier): < 0.2%
Output Impedance: 200 Ω
Maximum SPL (for 1% THD): 130 dB
S/N Ratio: 85 dBA
Self Noise (Amplifier): 9 dBA
Dimensions: 216 mm L x 50 mm Dia
Weight: 596 g
Included Accessories: Tube Mic Cable, Power Supply, Shock Mount, Wooden Box, Flight Case

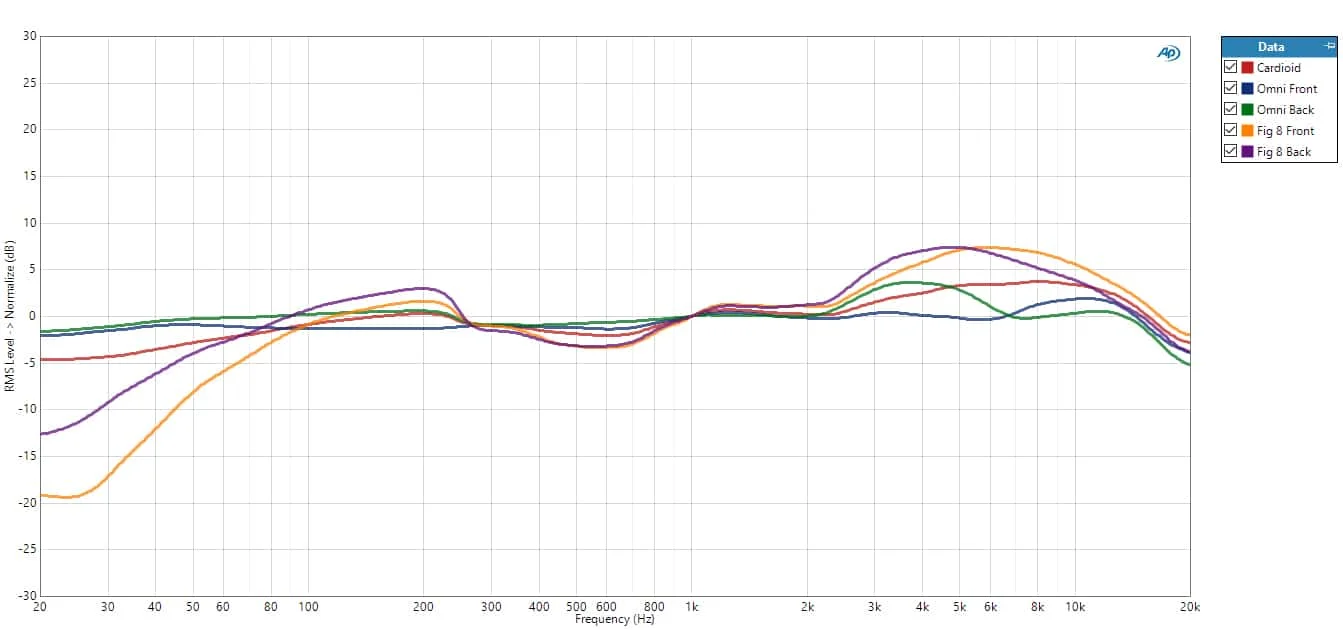

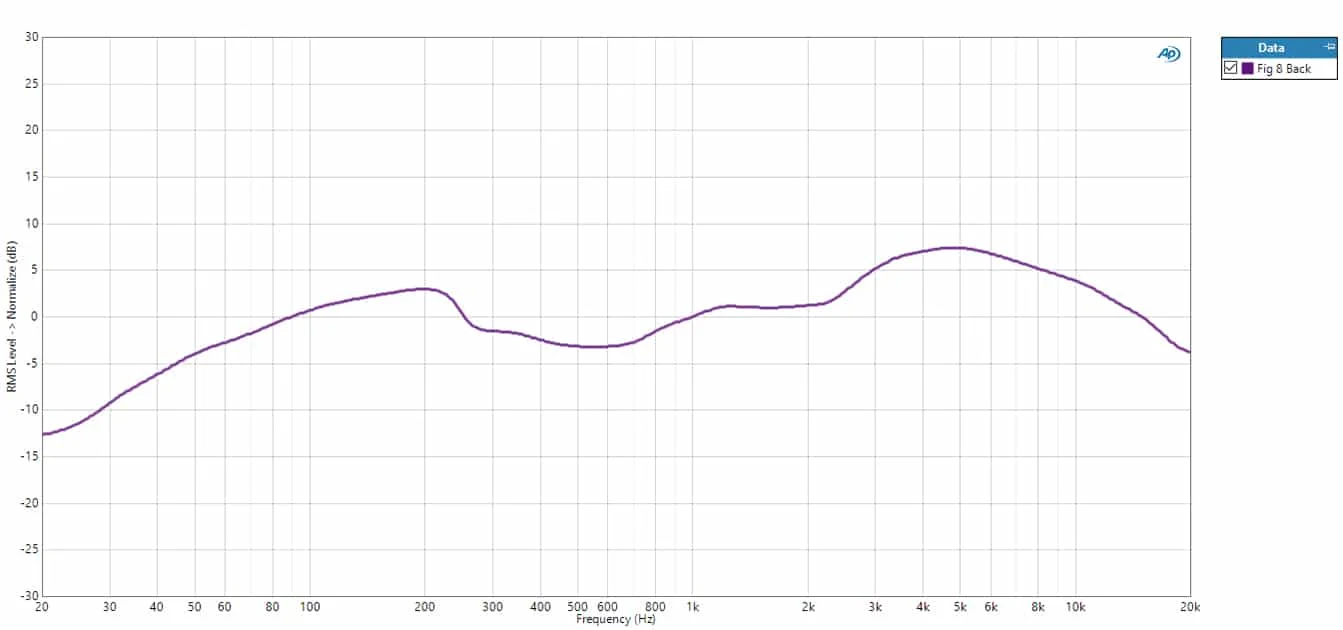

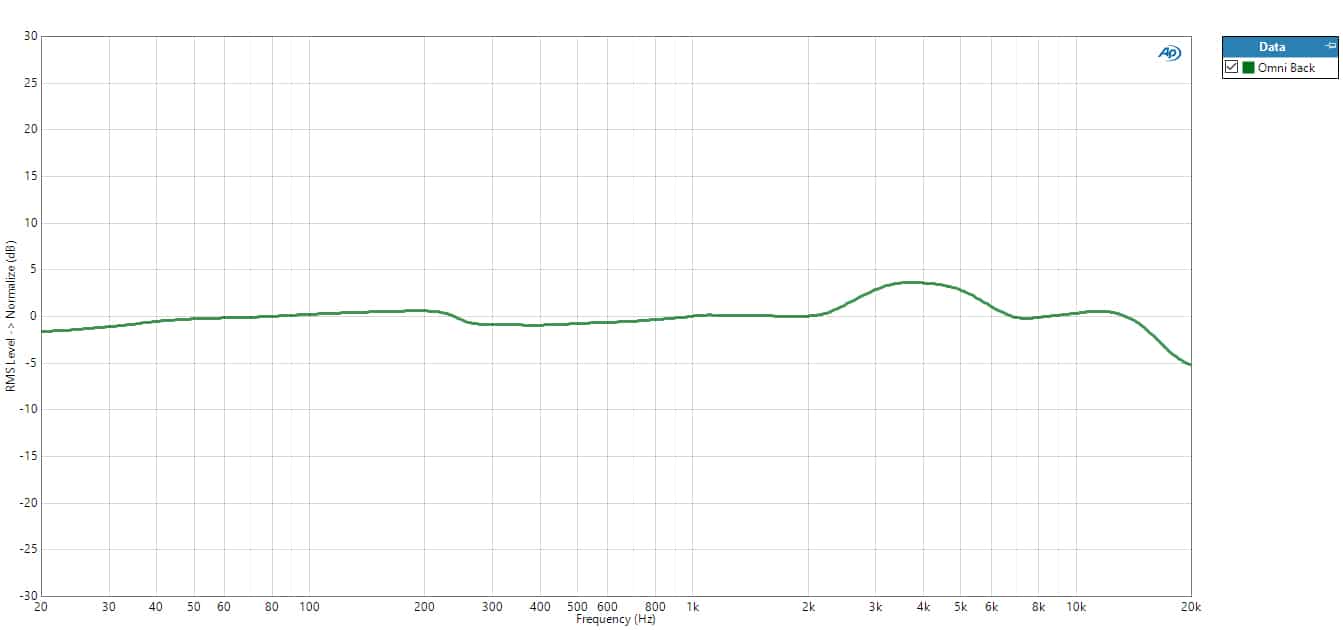

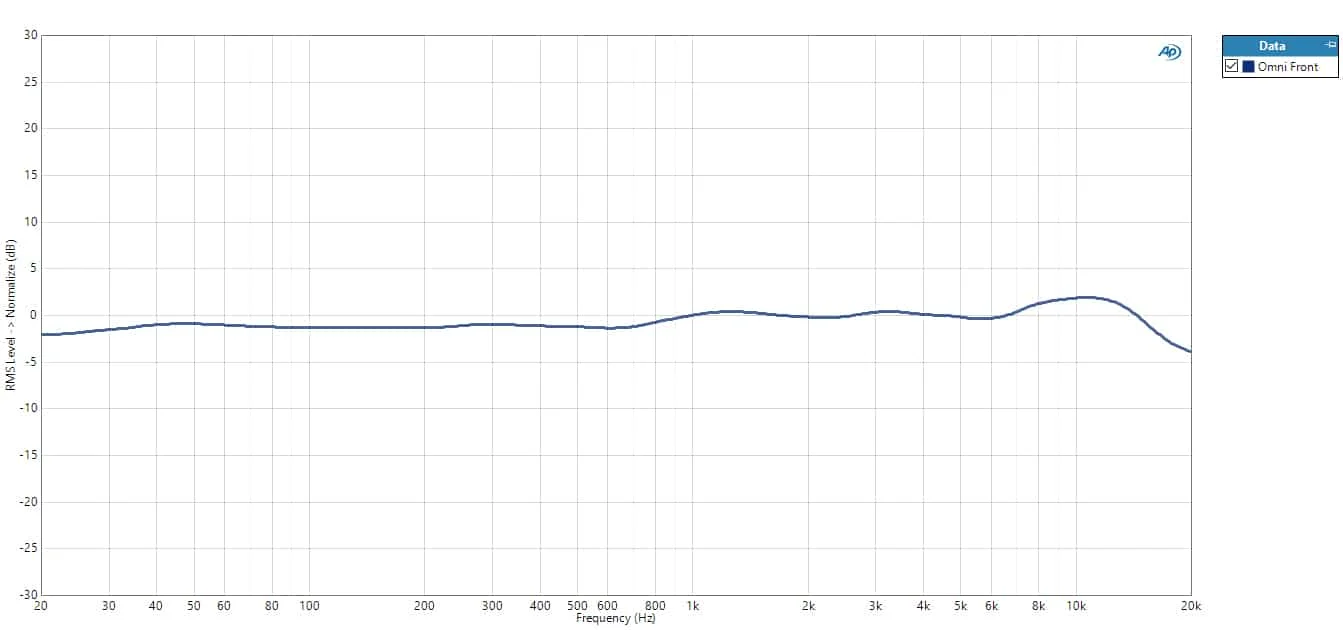

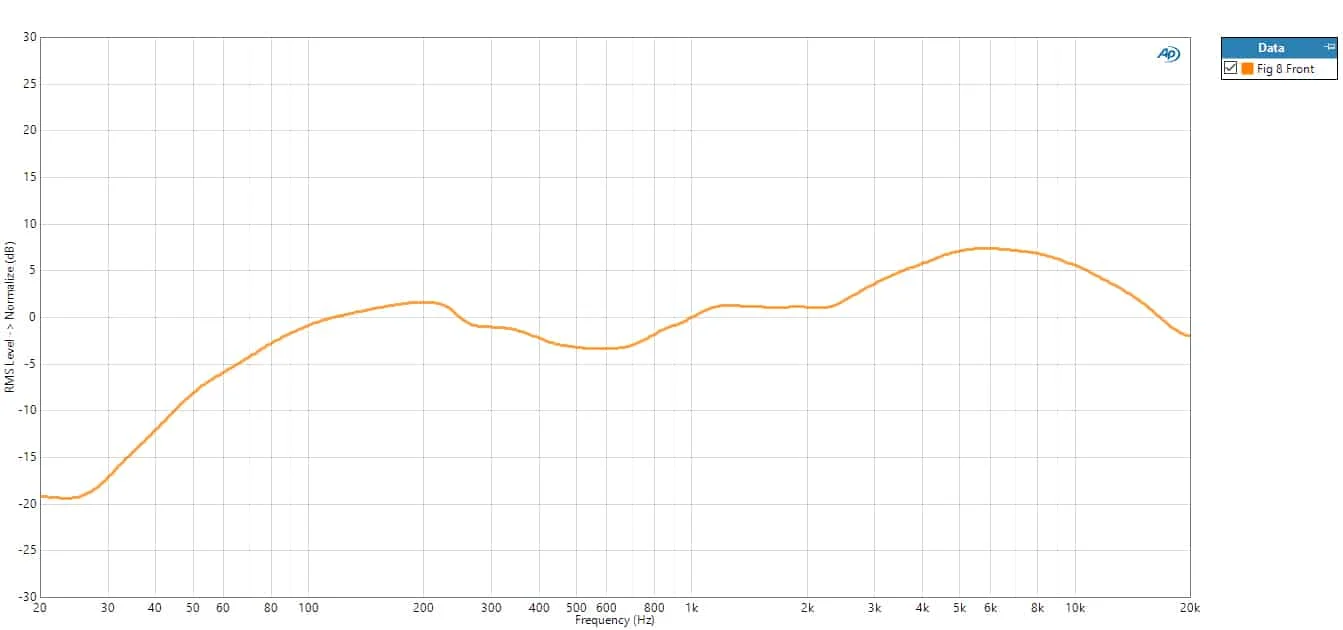

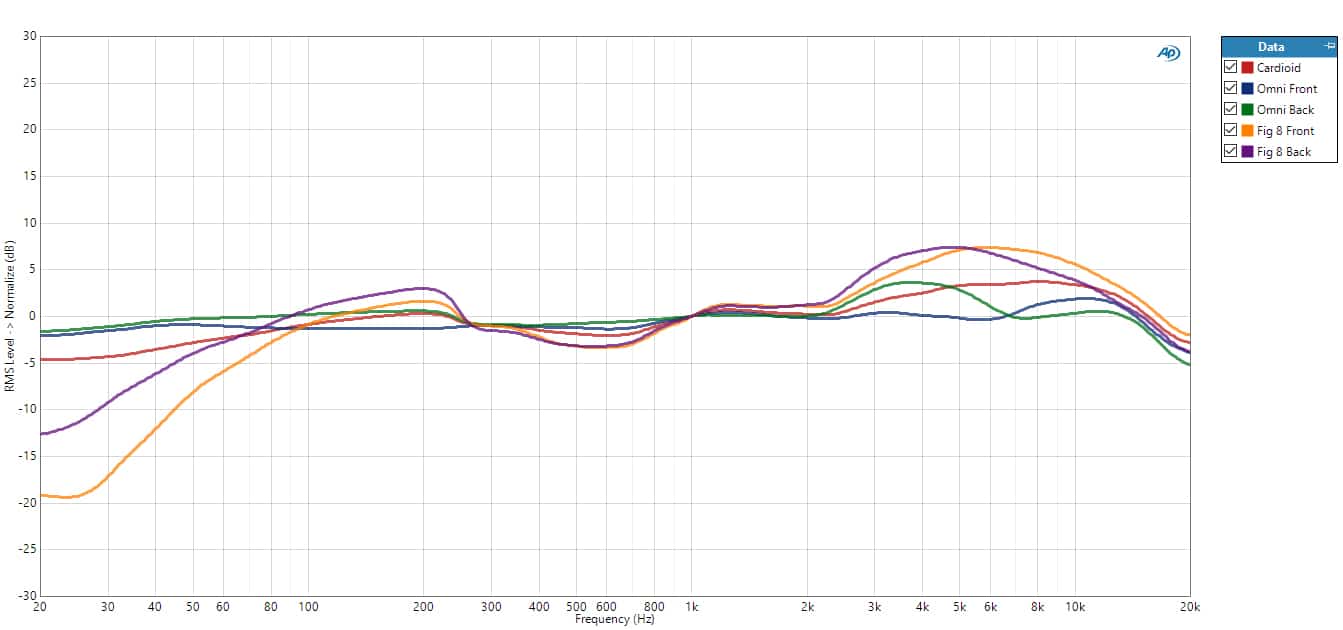

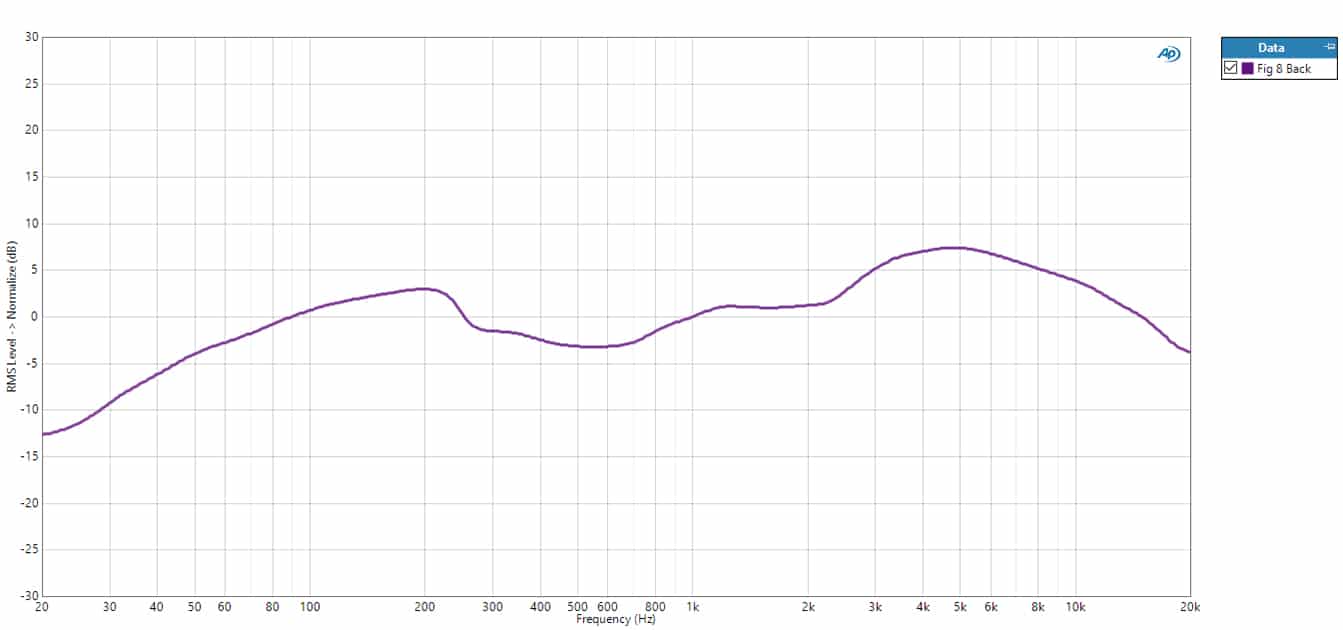

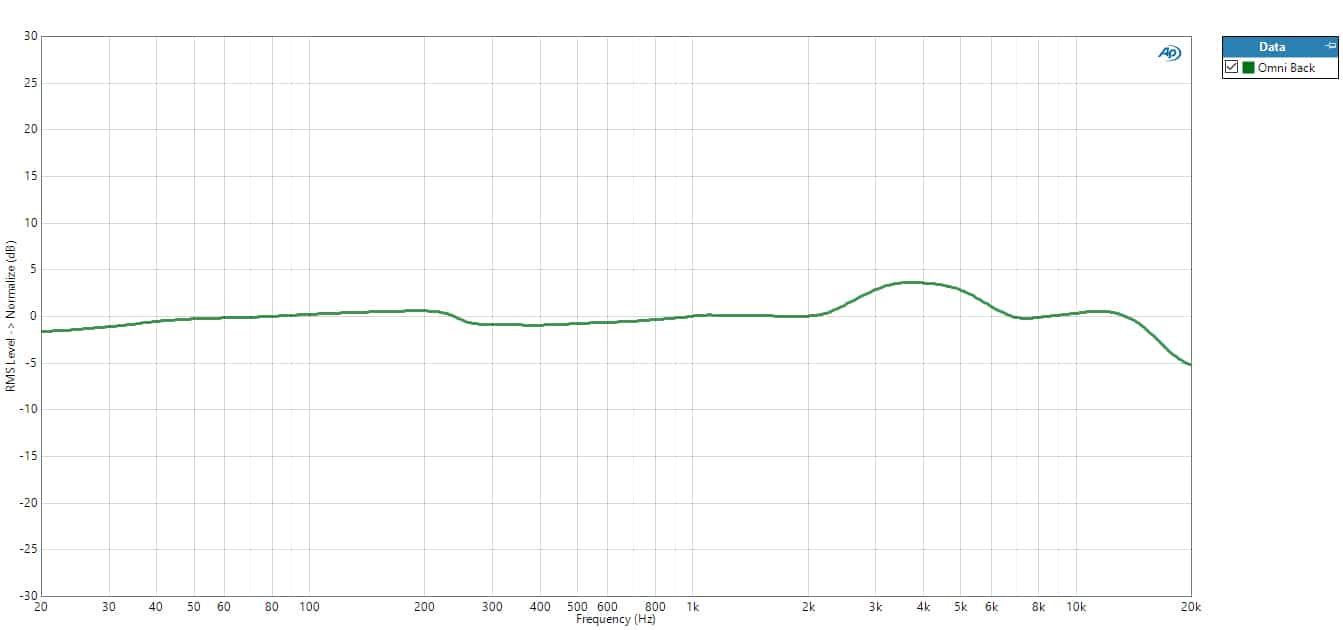

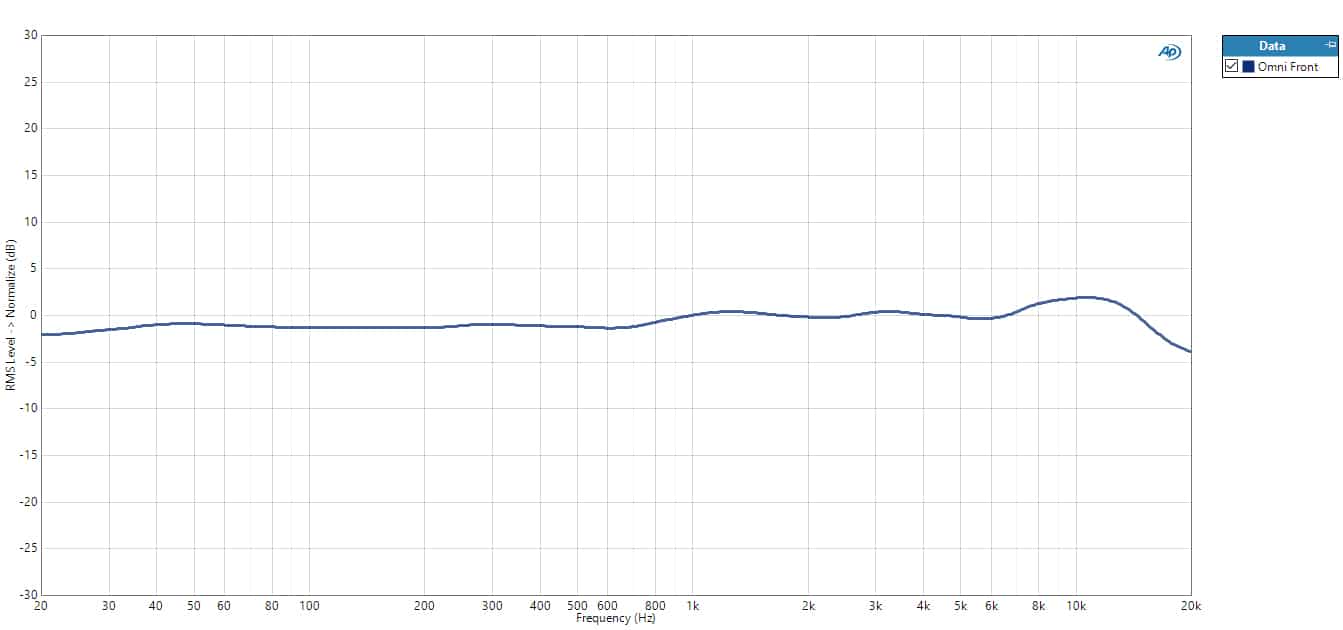

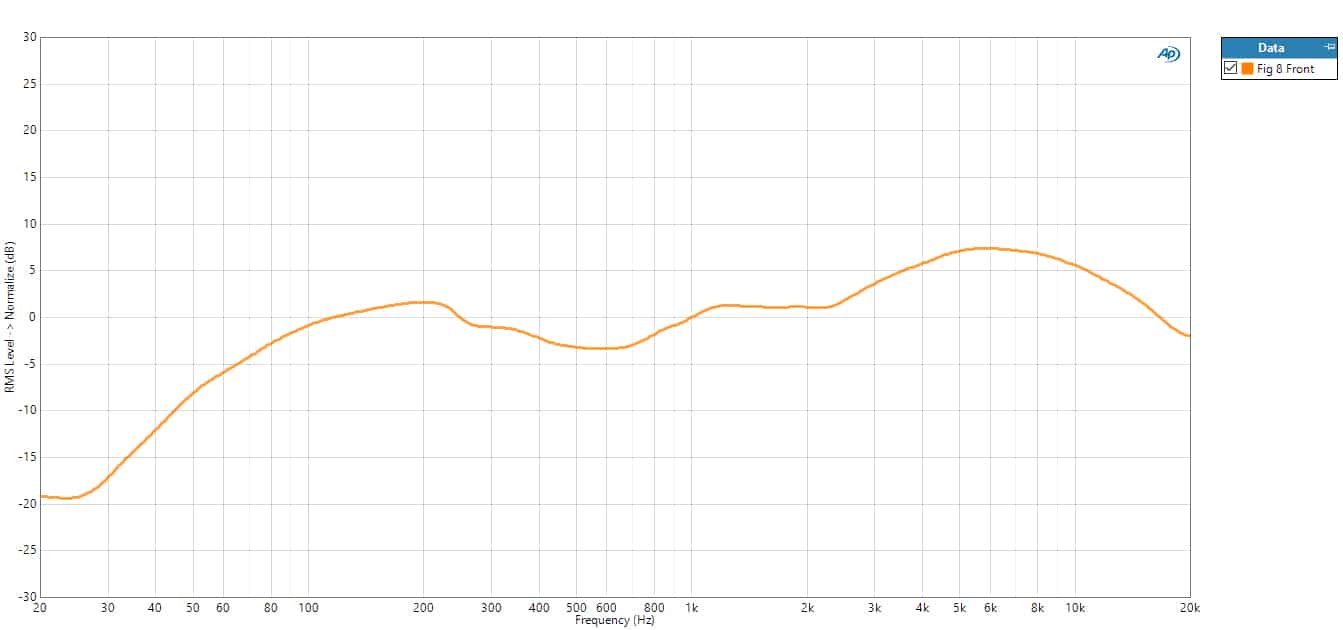

Frequency Response

Configuration Options

ELA M 251T

Single microphone system

Each system includes:

  • ELA M 251T Microphone
  • M 950E Power Supply
  • M 850T Sommer Tube Microphone Cable – 10m
  • M 751 Rycote Shock Mount
  • FC50 Locking Flight Case
  • WB50 Wooden Microphone Box

ELA M 251T Stereo Set

A frequency and gain matched pair of microphones with dual power supply

Each system includes:

  • (2x) Matched ELA M 251T Microphones
  • M 950ES Power Supply
  • (2x) M 850T Sommer Tube Microphone Cables – 10m
  • (2x) M 751 Rycote Shock Mounts
  • FC50S Locking Flight Case
  • (2x) WB50 Wooden Microphone Boxes

These microphones are a welcome and worthy addition to our collection. I couldn’t be happier with our new mics.  They meet and even exceed the sonic quality and “vibe” of any vintage tube mic I’ve ever owned or use, and I don’t have to sift through a dozen or more ‘vintage’ mics to find one that actually sounds like it’s supposed to.”

Bruce & Michael Seiferts
